Product Detail

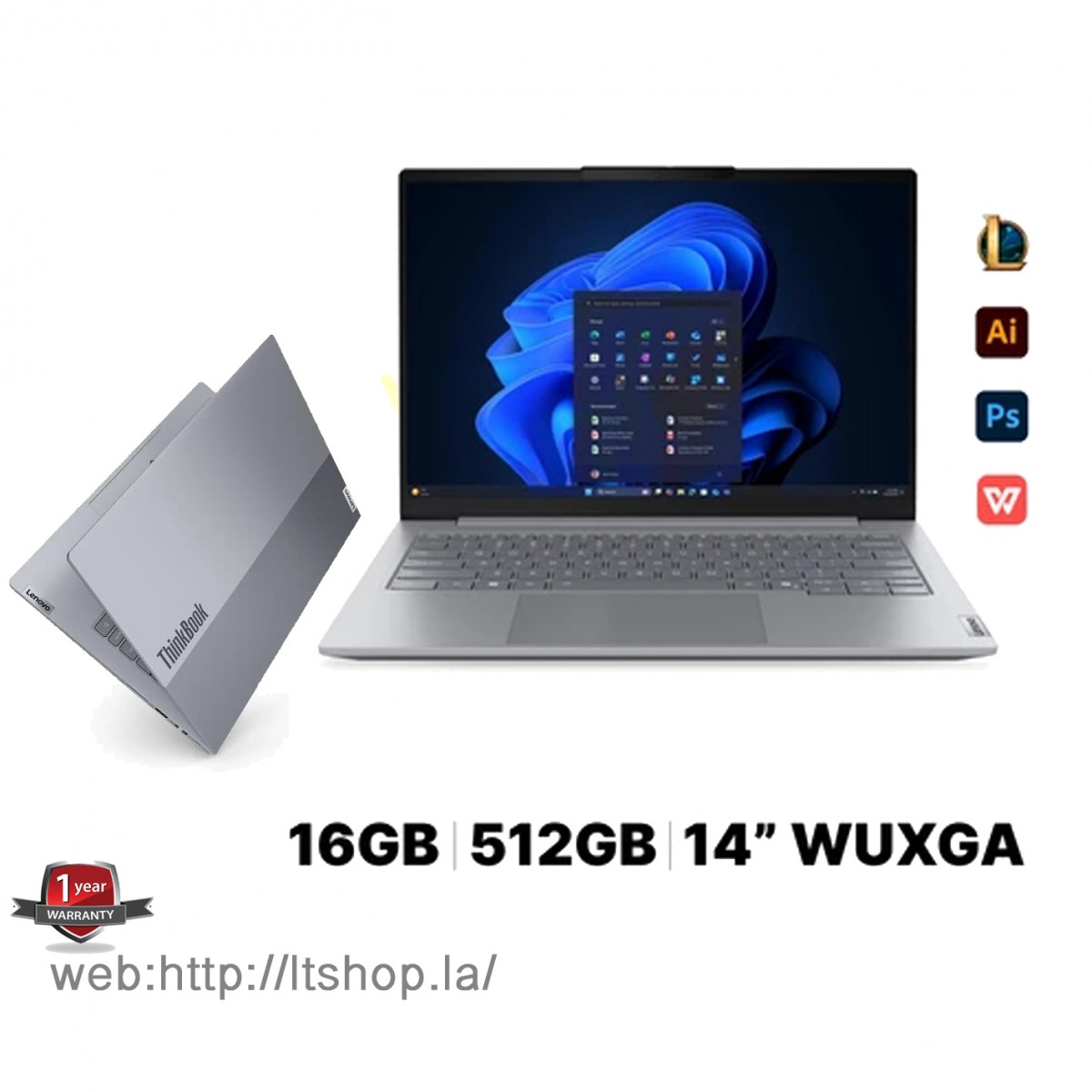

Model :ThinkBook 14 G9 AHP (21V0007UTH)
Processor :AMD Ryzen 7 250 (3.3GHz up to 5.1GHz, 8C/16T, 8MB L2 Cache / 16MB L3 Cache)
Chipset :AMD SoC Platform
AI Engine :AMD Ryzen AI• NPU TOPS : Up to 16 TOPS
Graphics :AMD Radeon 780M Graphics (Integrated Graphics)
Display Screen :14.0" 1920x1200 (WUXGA), IPS, 400nits, Anti-glare, 45% NTSC, 90% Screen-to-Body Ratio
Main Memory :16GB (1x 16GB) DDR5-5600 SO-DIMM
Memory Slot :2x DDR5 SO-DIMM slots, dual-channel capable
Max Memory :Up to 64GB
Storage :512GB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Slot :2x M.2 slots• One M.2 2242 PCIe® 4.0 x4 slot• One M.2 2280 PCIe® 4.0 x4 slot
Optical Disk Drive :None
Web Camera :• 5.0MP with Privacy Shutter• 2x, Array Microphone
Sound Technology :High Definition (HD) Audio, Realtek® ALC3287 codec
Audio Jack :1x Headphone / microphone combo jack (3.5mm)
Speaker :Stereo speakers, 2W x2, Dolby Audio™
Network :10/100/1000 LAN
Wireless :Wireless 802.11ax (Wi-Fi 6)
Bluetooth :Bluetooth 5.2
Ports :
Power Adapter :65W USB-C® (3-pin)
Battery :Integrated 48Wh
OS :Windows 11 Home
Material :Aluminium (Top), PC-ABS (Bottom)
Keyboard Type :ENG/TH, 6-row, spill-resistant, multimedia Fn keys, key travel 1.5mm, Copilot key
Backlit :None
Touchpad :Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP)
Finger Print :None
Warranty :1-1-1
Dimension :(W x D x H) : 31.35 x 22.40 x 1.75 cm
Net Weight :1.36 KG
Package Dimension :(W x D x H) : 7.10 x 45.50 x 28.90 cm
Gross Weight :2.23 KG
Volume :9,336.15 cm3
Processor :AMD Ryzen 7 250 (3.3GHz up to 5.1GHz, 8C/16T, 8MB L2 Cache / 16MB L3 Cache)
Chipset :AMD SoC Platform
AI Engine :AMD Ryzen AI• NPU TOPS : Up to 16 TOPS
Graphics :AMD Radeon 780M Graphics (Integrated Graphics)
Display Screen :14.0" 1920x1200 (WUXGA), IPS, 400nits, Anti-glare, 45% NTSC, 90% Screen-to-Body Ratio
Main Memory :16GB (1x 16GB) DDR5-5600 SO-DIMM
Memory Slot :2x DDR5 SO-DIMM slots, dual-channel capable
Max Memory :Up to 64GB
Storage :512GB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Slot :2x M.2 slots• One M.2 2242 PCIe® 4.0 x4 slot• One M.2 2280 PCIe® 4.0 x4 slot
Optical Disk Drive :None
Web Camera :• 5.0MP with Privacy Shutter• 2x, Array Microphone
Sound Technology :High Definition (HD) Audio, Realtek® ALC3287 codec
Audio Jack :1x Headphone / microphone combo jack (3.5mm)
Speaker :Stereo speakers, 2W x2, Dolby Audio™
Network :10/100/1000 LAN
Wireless :Wireless 802.11ax (Wi-Fi 6)
Bluetooth :Bluetooth 5.2
Ports :
1x USB-A (USB 5Gbps), Always On
1x USB-A (USB 5Gbps)
2x USB-C® (USB4® 40Gbps), with USB PD 45-65W and DisplayPort™ 1.4a
1x HDMI® 2.1, up to 4K/60Hz
Power Adapter :65W USB-C® (3-pin)
Battery :Integrated 48Wh
OS :Windows 11 Home
Material :Aluminium (Top), PC-ABS (Bottom)
Keyboard Type :ENG/TH, 6-row, spill-resistant, multimedia Fn keys, key travel 1.5mm, Copilot key
Backlit :None
Touchpad :Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP)
Finger Print :None
Warranty :1-1-1
Dimension :(W x D x H) : 31.35 x 22.40 x 1.75 cm
Net Weight :1.36 KG
Package Dimension :(W x D x H) : 7.10 x 45.50 x 28.90 cm
Gross Weight :2.23 KG
Volume :9,336.15 cm3
