Product Detail
|
 IEEE 802.11n IEEE 802.11a IEEE 802.11g IEEE 802.11b |
|
|

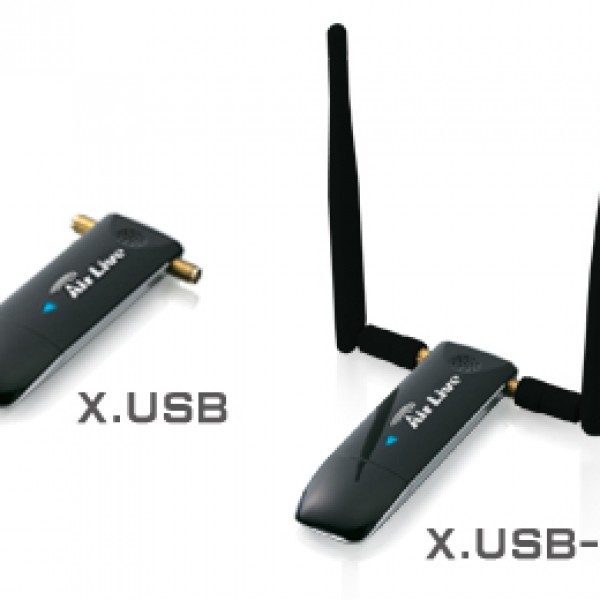

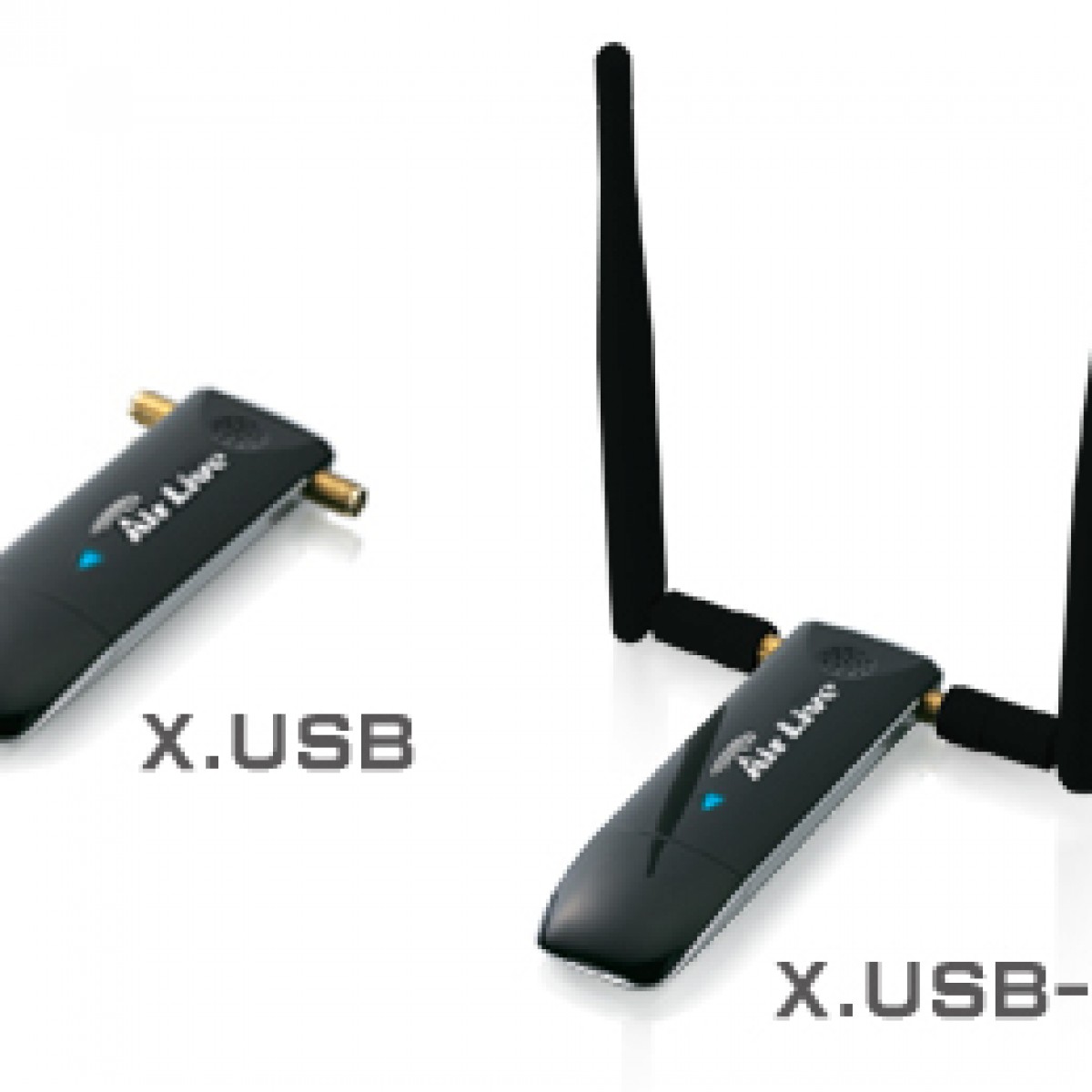

2 x R-SMA Connector Model X.USB-3: 2 x 3dBI antennas Model X.USB: Antenna not included |
|
|
Chipset: Atheros UB82 , 11a/b/g/n USB Interface: USB 2.0 |
|
|
Orthogonal frequency division multiplexing (OFDM) Direct Sequence Spread Spectrum (CCK, DQPSK,DBPSK) |
|
|
64/128bit WEP, WPA, WPA2, 802.1x and 802.11i |
|
|
CSMA/CA (Collision Avoidance) with ACK |
|
|
CE: 20dBm FCC: 23dBm |
|
|
11g: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto rate fall back 11b: 11, 5.5, 2, and 1Mbps with auto-rate fall back 11a: 54, 48, 36, 24, 18, 12, 9 and 6Mbps with auto rate fall back 802.11n 20 MHz BW(LGI): 65, 58.5, 52, 39, 26, 19.5, 13, 6.5 40 MHz BW(LGI): 135, 121.5, 108, 81, 54, 40.5, 27, 13.5 20 MHz BW(SGI): 72.2, 65, 57.8, 43.3, 28.9, 21.7, 14.4, 7.2 40 MHz BW(SGI): 150, 135, 120, 90, 60, 45, 30, 15 |
|
|
2.4GHz: -91dB 5GHz: -92dB |
|
|
Ad-Hoc or Infrastructure |
|
|
A-Type USB 2.0 connector |
|
|
0~55℃ ambient temperature |
|
|
20~70℃ ambient temperature |
|
|
Continuous transmission mode: 290mA at 5VDC (Max.) |
|
|
90% maximum (non-condensing) |
|
|
Windows® XP/VISTA/7, Linux |
|
|
CE FCC |
|
|
20g |
|
|
98 x 28 x 12 mm |
