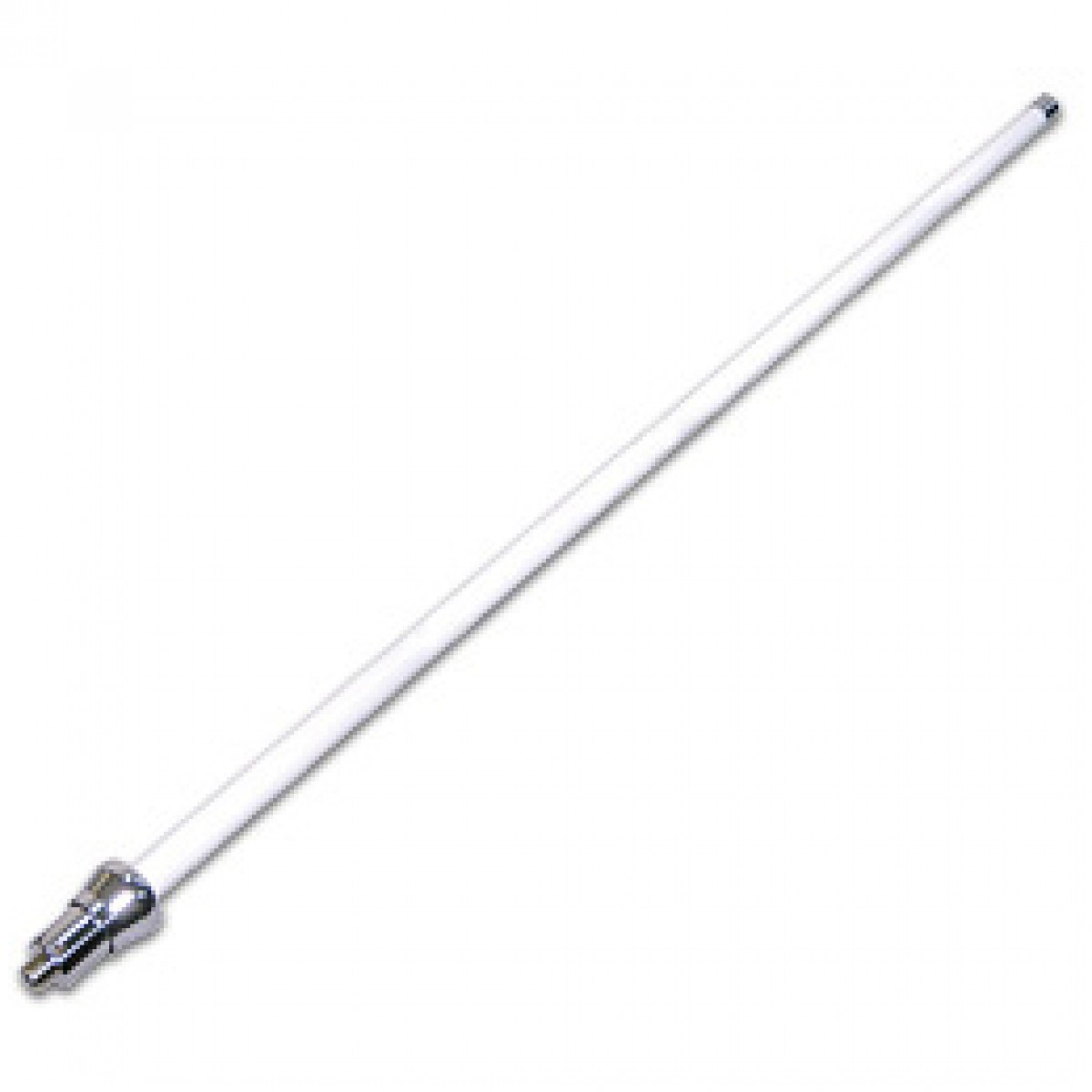

Product Detail
| Connector type |
|
 Recommended adapter and cable |
 RG-213-SNN cable required for connection with outdoor AP RG316-SNM cable required for short connection(30cm) with indoor AP RG316-SNF and SG213-SNN required for longer distance(>30cm) with indoor AP |
| Frequency range |
2.4~2.4835 GHz |
| Impedance |
50 Ohms nominal |
| VSWR |
2.0 or smaller |
| Gain |
15dBi |
| Radiation |
Horizontal: 360 degree Vertical: 4 degree |
| Polarization |
Vertical |
| Material |
Radiator: Copper and Brass Radome: Fiberglass Mounting Base: Zinc Alloy with Chrome Plated Guide Pipe: Aluminum Alloy Bracket: Aluminum Alloy |
| Temperature |
Operating: -20 to +65 degree C Storage: -30 to +75 degree C |
| Dimensions |
Height: 1600 mm Pole size: 28~46 mm Weight: 1000 g |
