Product Detail

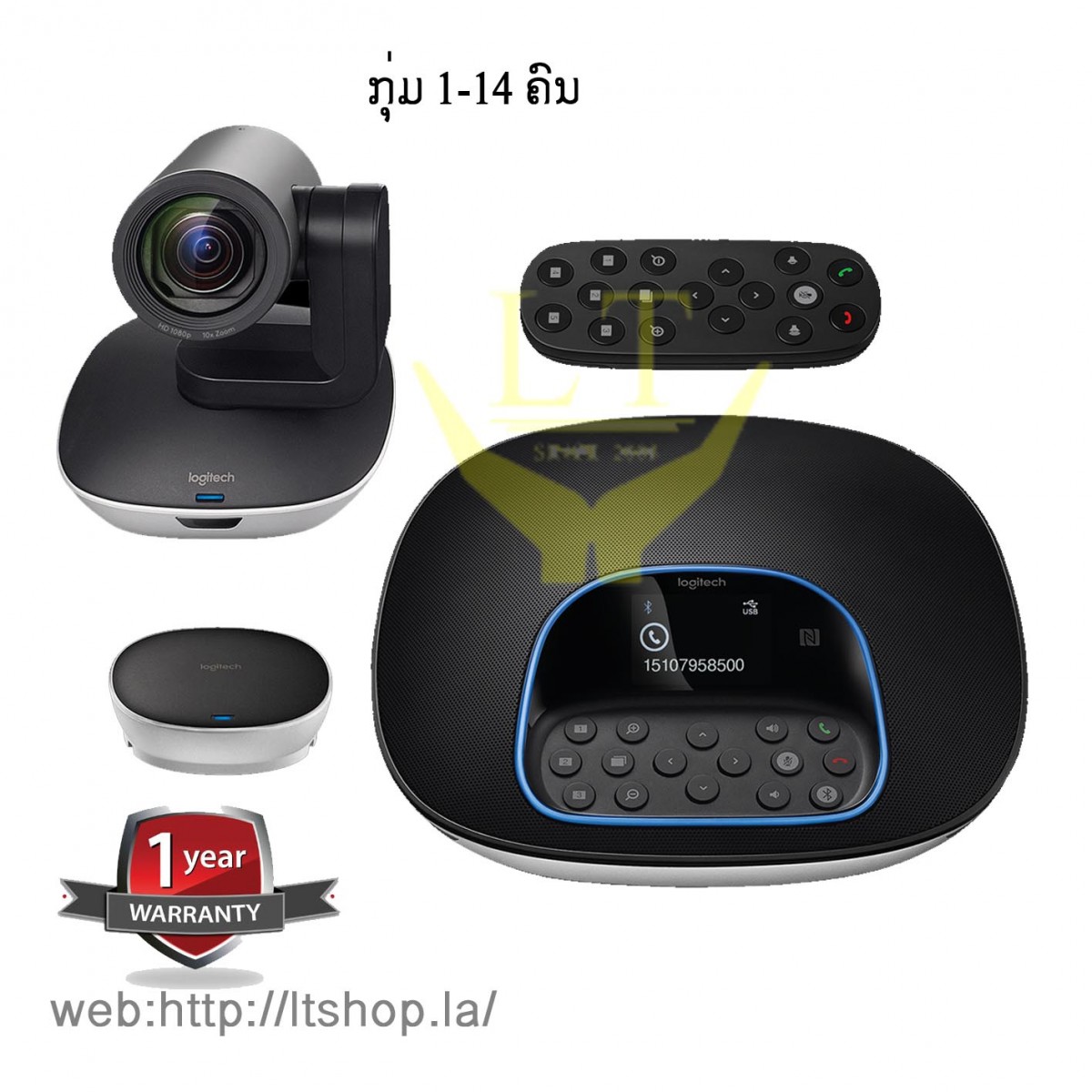

Logitech Group Technical Specifications:
Dimensions:
- Camera: 5.12 in (130 mm) x 7.0 in (170 mm) x 5.40 in (138 mm)
Weight: 1.31lb (585 g) - Speakerphone: 9.5 in (240 mm ) x 2.5 in (65 mm ) x 9.5 in (240 mm )
Weight: 2.68 lb (1223 g) - Hub: 3.75 in (94 mm) x 1.3 in (34 mm) x 2.9 in (74 mm)
Weight: 3.0 oz (83 g) - Remote: 2.0 in (50 mm) x 5.0 in(120 mm) x 0.5 in (12 mm)
Weight: 2.0 oz (51 g) - Wall/Table Mount: 8.27 in (210 mm) x 4.72 in (120 mm) x 3.9 in (99 mm)
Weight: 8.99 oz (255 g)
Warranty:
- 1-Year Limited Hardware Warranty
Package Contents:
- Camera
- Speakerphone
- Remote control
- Two 5m/16.4’ cables for connection between speakerphone and hub and camera and hub
- One 3m/9.8’ meter cable between hub and PC
- Velcro for cable management
- Velcro for hub to table securing, powered hub
- Power adapter with regional plugs
- Mount
- Quick start guide
- Warranty card
Technical Specifications of the Logitech Group Video Conference Bundle:
Camera:
- Smooth motorized pan
- Tilt and zoom
- Controlled from remote or console 260°pan
- 130° tilt
- 10x lossless HD zoom
- 90° Field of View
- Full HD 1080p 30fps
- H.264 UVC 1.5 with Scalable Video Coding (SVC)
- Autofocus 5 camera presets
- Far-end control (PTZ) of ConferenceCam product
- UVC Control Via USB
- ZEISS® lens certification
- Kensington security slot
- LED to confirm video streaming
- Standard tripod thread
Remote Control:
- Dockable 8.5 m/28-foot range
Speakerphone:
- Full-duplex performance
- Acoustic echo cancellation
- Noise reduction technology
- Ultra-wideband audio
- Bluetooth® and NFC enabled
- LCD for caller ID, call duration and other functional response
- LEDs for speakerphone streaming, mute, hold, and Bluetooth
- Touch controls for call answer/end, volume and mute, Bluetooth – plus camera PTZ, “home” preset and far-end control
- Microphones (Tx)
- Four omni-directional microphones supporting 20-foot diameter range
- Frequency response: 100Hz – 11KHz
- Sensitivity: -28dB +/-3dB
- Distortion: <5% from 200Hz
- Kensington security slot
VideoConferenceGear.com has been extensively testing the new Logitech Group system. The speakerphone is what has been improved greatly compared the the first generation CC3000e. Crystal Clear sound!
Hub/Cable:
- Central mountable hub for connection of all components
- Included adhesive solution for under-table mounting
- Two cables for connection between hub and camera/ speakerphone (Length: 5m/16 ft)
- One USB cable for connection to PC/Mac (Length: 2 m/6.6 ft)
- AC Power adapter (Length: 3 m/9.8 ft)
Mount:
- Dual purpose mount for wall placement or for elevating camera on table
Compliance and tools:
- USB 2.0 compliant
- UVC-compliant video and audio for broad application compatibility
- Skype for Business™ certified, Microsoft® Lync®, Cisco Jabber® and WebEx® compatible
- Enhanced integration with Logitech Collaboration Program (LCP) members
- Downloadable diagnostic tool (We have been loving this tool to get the right color/brightness settings on the Logitech Group)
- Field upgradeable firmware tool
- Downloadable app plug-ins for advanced feature support
